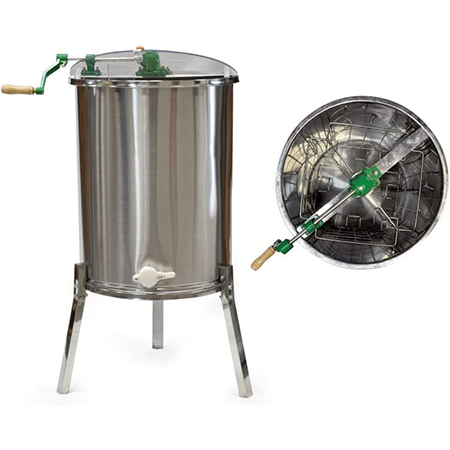

Beehive Flow-4 Frames Stainless Steel, Manually Operated Tangential Honey Extractor (EX-03A)

Product Highlights

  • Total height: 114 cm
  • Drum height: 60 cm, with feet: 94 cm (stainless steel)
  • Drum diameter: 48 cm (inner 46 cm)
  • Frames sizes max.: 25 x 40 cm (at a minimum frame length of 19 cm)
  • Weight.: 30 kg
  • Drive speed ratio: 3:1 (without free wheeling)
  • Outlet pipe diameter : 40mm
  • OEM/ODM: We experienced in this line.

950.00AED

In stock

Compare

In stock

Heavy

Feature:

  • 4 frames manual honey extractor EX-03A — Manually operated tangential extractor
  • This is a new 4 frame stainless steel extractor, ideal for the hobby scale beekeeper.
  • It has the outlet device at the bottom for controlling the the honey flow.
  • The size of extractor basket is: 35cm * 43cm. The max frame size is approx 25cm * 40cm
  • Turning gear with bearings and metal gears, the drum is equipped with 3 legs.
  • Cage fits most frames (see technicals).
  • The bottom is conically shaped to drain the honey to the bung
  • Product Advantages:
  • Tank, basket are made stainless steel, made from food-safe stainless-steel
  • Durable hand drive 1:3 with Clear plexiglass top
  • 3 sturdy legs AND 4 honeycomb stainless steel baskets suitable for the frames up to 25cm * 40cm
Weight 30 lbs
Dimensions 26 × 42 × 115 in
