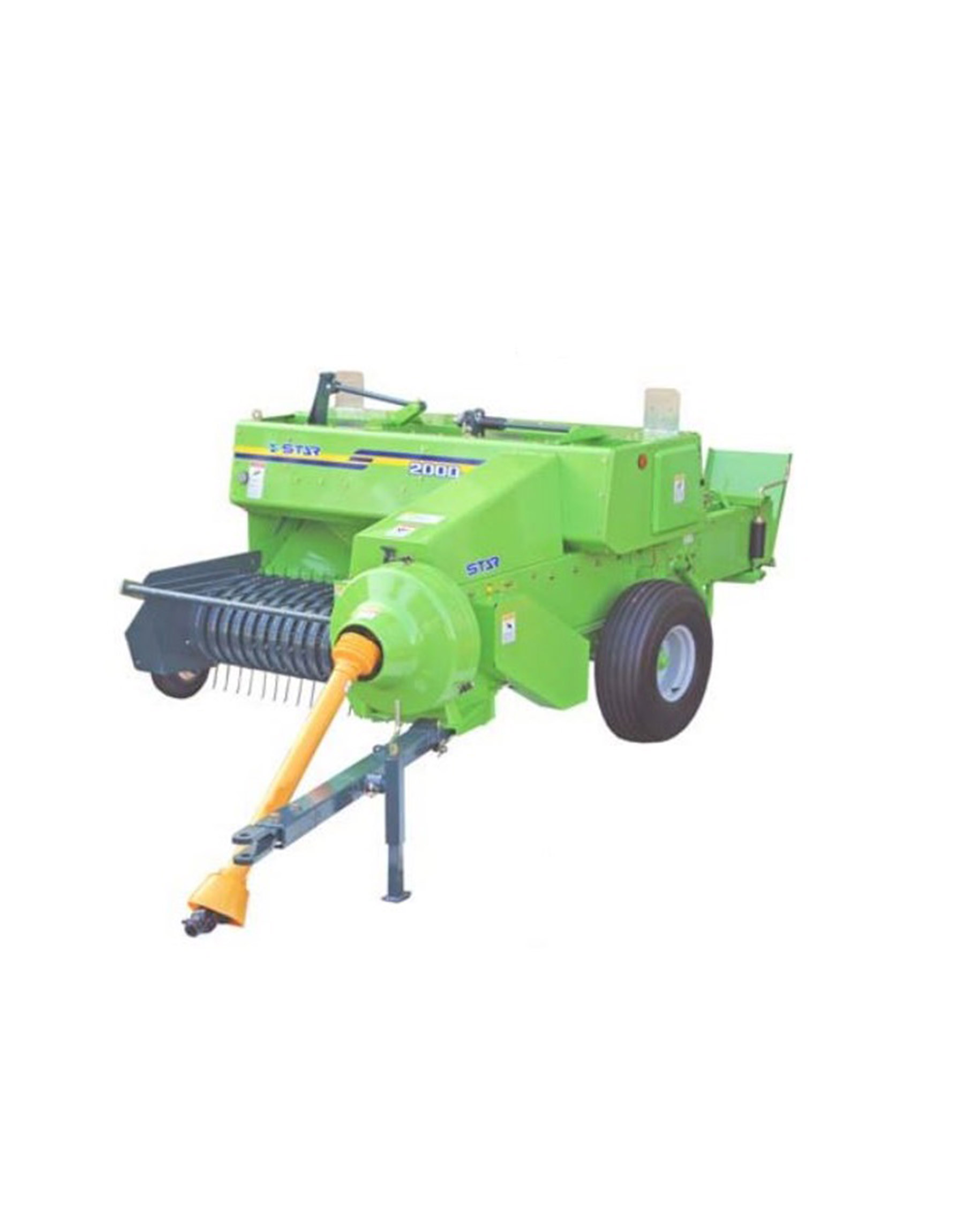

Star Square Hay Baler (IHI 2000), Green,Dimensions 430 X 215 X 130 cm, Weight 920 Kg, ( Made In Japan )
AED 52,999.00

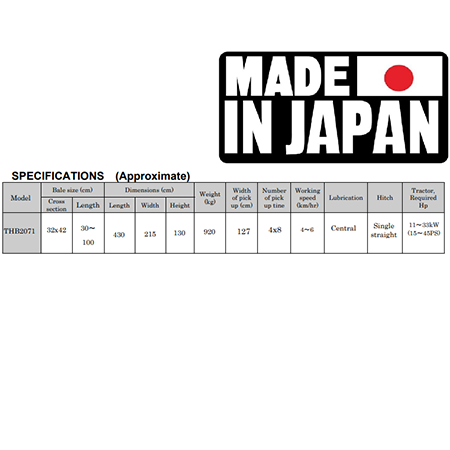

- Made In Japan
- Bale size – Cross section (32×42 cm), Length (30～100 )
- Width of pick up – 127 cm
- Number of pick up tine – 4×8
- Working speed – 4～6 km/hr
- Lubrication – Central
- Hitch – Single straight
- Tractor, Required Hp – 11～33kW (15～45PS)
STAR HAY BALER
Compact body, lightweight with top quality, efficiency and easy operation. High mobility and performance. Efficient baling of hay and straw especially in small fields.
Features
- Work with compact tractors.
- Easy-handling compact bale (cross section 42cmx32cm).
- Top and bottom bale press and long chamber apply good quality bale.
-Lightweight, Easy Operation
Compact body is suited for compact tractors and operation on soft and declined field with small traction.
Reliable STAR Original Knotter
STAR original knotter is durable and reliable and can make knots both sisal or synthetic twines efficiently and tightly.
Safety devices
Several safety devices protect the machine and key components from interruption such as overloads. When an overload does occur two friction clutches and shear bolt with the flywheel are functioned. Shear bolts are also prevented key components from damage.
Central lubrication system
Central lubrication system can supply grease to 20 lubrication points to increase the reliability and lifetime of the machine.
| Weight | 920 kg |
|---|---|
| Dimensions | 430 × 215 × 130 cm |
Related Products
- Agitator blade: Agitates to prevent stagnation and controls the flow from main hopper to sub hopper
- Plastic Sub-hopper: Gathers the fertilizer from main hopper temporarily and supplies to the spout uniformly
- Durable Cast iron flange: Tough cast iron flange improves its durability and reduces vibration of the spout with a counter weight.
- Low-vibration plastic spout: Light plastic spout attains low-vibration and high durability, also good for preventing corrosion.
- Special designed stainless bracket: Splashes the fertilizer at the end of the spout to spread fertilizer evenly.
Out of stock
- Working width (Tedding): 175 cm
- Working width (Raking): 260 cm
- Number of Arm: 6
- Tedding Working Speed (km/hr.): 5～8
- Raking Working Speed (km/hr.): 4～8
- Tedding Working capacity (Ton/hr.): 65～100
- Raking Working capacity (Ton/hr.): 80～155
- Tractor Required HP: 13～29.5kW (18～40PS)
- Dimensions: 220 × 260 × 105 cm
- Weight: 155 kg
1 in stock
- Working Width: 125 cm
- Number of Drum: 2
- Number of Knife: 6
- Folding Method: Hydraulic
- Working Speed (km/hr.): 6～12
- Working capacity (area/hr.): 63～127
- Tractor Required HP: 13～37kW (25～50PS)
- Weight: 215 kg
1 in stock
